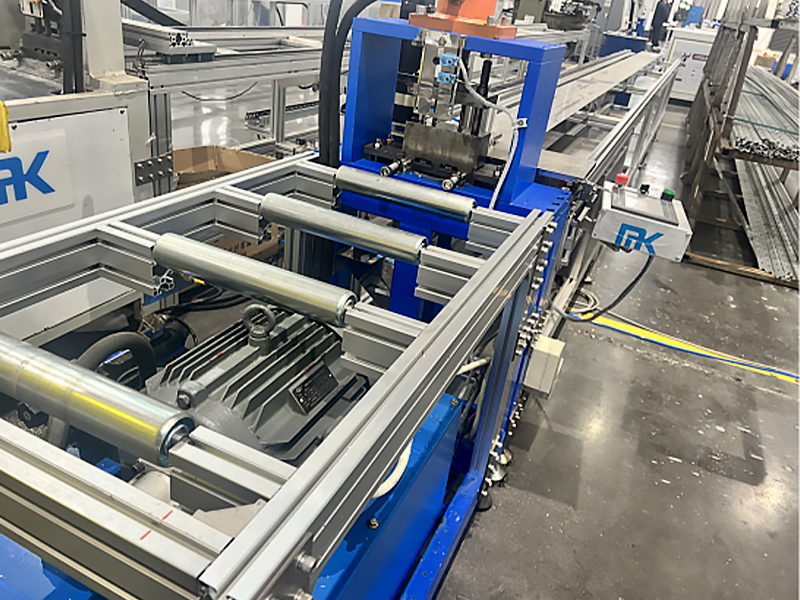

Home / Products / MK Automation CNC Machines / Automated Punching Machine

About Us
Shanghai MK Aluminum Co. , Ltd.

Shanghai MK Aluminum Co., Ltd. Dongtai factory, occupying more than 210 hectares, includes 8 production buildings, 2 office buildings, and 1 apartment building, which is more than 200,000 square meters of building area in total. Since 2006 MK has specialized in aluminium extrusion design and production.

As China Automated Punching Machine Manufacturers and Automated Punching Machine Factory, MK aluminum profiles are widely applied in modular assembly products, modular conveyors, machine frames, fences, workstations, linear motion products, stair and platform products, commercial complexes, resort hotels, apartment buildings, villa and office buildings, solar frames, solar racking products across the world. The annual output of aluminum profiles is over 60,000 tons.

We have a professional R&D team with rich technical experience and innovation ability. The company focuses on technological innovation, constantly promotes the development of the field of intelligent equipment, and cooperates with customers to customize solutions that meet their needs. We offer Custom Automated Punching Machine.

With quality as the core, we strictly control the product manufacturing process to ensure product quality and reliability. The company's products comply with relevant international and domestic standards and have passed corresponding certifications and testing.

News
Automated Punching Machine Industry knowledge

Method for realizing automatic positioning of automatic punching machine

The method of automatic punching machine to achieve automatic positioning mainly relies on advanced machine vision technology and automation equipment control system. The following are the specific implementation steps and key technical points of this method:
Image capture:Use CCD (charge coupled device) industrial camera or similar high-precision image sensor to capture the target or hole on the workpiece in real time. These cameras usually have high resolution and fast response capabilities, and can accurately capture the image information of the workpiece surface.
Image analysis:The captured image is processed by image processing software or image analysis module integrated in the punching machine. This step includes image preprocessing (such as denoising, contrast enhancement, etc.), feature extraction (such as edge detection, hole recognition, etc.) and image analysis (such as calculating hole position, size, shape and other parameters).
Signal feedback and positioning:After image analysis, the system feeds back the calculated hole position information to the integrated motion control system through a signal. This system accurately calculates the moving path and position of the punch according to the feedback signal to achieve automatic positioning.
Punching processing:After completing the automatic positioning, the transmission parts of the punching machine (such as motors, cylinders, etc.) move to the specified position quickly and accurately according to the instructions, and perform the punching processing operation. At this time, the punch aligns with the positioned hole to punch and cut, completing the processing task.
High-precision image sensor:High-precision image sensor is the basis of automatic positioning. It can capture the tiny details and features of the workpiece surface and provide accurate data for subsequent image analysis.Advanced image processing technology:Image processing technology is the key to achieving automatic positioning. Through methods such as image preprocessing, feature extraction and image analysis, the system can accurately identify parameters such as the position, size and shape of the holes on the workpiece.
Integrated motion control system:The integrated motion control system is the executor of automatic positioning. It accurately calculates the movement path and position of the punch according to the signal feedback from the image analysis system, and directs the transmission parts to move and process quickly and accurately.
High degree of automation:The automatic punching machine has a high degree of automation. From image capture, image analysis to signal feedback and punching processing, the entire process realizes unmanned operation, greatly improving production efficiency and processing accuracy.
Strong adaptability:Automatic punching machines can adapt to the processing needs of workpieces of different shapes, sizes and materials. By adjusting the image analysis algorithm and control system parameters, punching tasks of different specifications and requirements can be easily achieved.
The automatic punching machine realizes automatic positioning and punching of holes on the workpiece by combining advanced machine vision technology and automated equipment control systems. This method not only improves production efficiency and processing accuracy, but also reduces labor costs and labor intensity.

Automatic punching machines require regular maintenance

Automatic punching machines do need regular maintenance to ensure their long-term stable operation and efficient processing. The following are the main contents of regular maintenance work for automatic punching machines:
Remove waste and debris: Regularly remove punching waste, oil stains, dust and other debris. You can use brushes, vacuum cleaners and other tools to clean them. Be careful not to damage the machine parts.Anti-rust treatment: If the punching machine needs to be shelved for a long time, the surface should be cleaned before storage, and a layer of anti-rust paint should be applied to prevent rust.
Regular lubrication: Add an appropriate amount of lubricating oil to each lubrication point of the punching machine to ensure that the friction surfaces of various parts of the machine are fully lubricated. Lubrication points include guide rails, sliders, spindles and other parts.Pay attention to the type and use of lubricating oil. Choose the appropriate lubricating oil according to the user manual of the punching machine and add it as required.
Check the oil level and replace it: Regularly check the lubricating oil level of components such as sliders, and replenish it in time if the oil is insufficient. At the same time, replace the lubricating oil regularly and clean the lubrication pipeline to prevent the oil nozzle from clogging.
Inspection of key components: Regularly inspect the key components of the punching machine, including motors, transmission devices, control systems, etc. If abnormal conditions are found, adjust or replace parts in time.Mold inspection and correction: Regularly check the wear of the punching mold and replace the severely worn mold in time to ensure the quality and efficiency of punching. At the same time, regularly correct the mold position to avoid the reduction of cutting accuracy due to mold displacement.
Electrical system inspection: Regularly check the electrical system of the punching machine, including wires, wiring terminals, etc., to prevent failures caused by aging of wires, poor contact, etc.Hydraulic system inspection: Regularly check the hydraulic system of the punching machine, including oil pumps, oil pipes, oil cylinders, etc., to prevent punching failures caused by hydraulic system failures.
Check the safety protection device: Regularly check the safety protection device of the punching machine, including emergency stop switches, protective covers, etc., to ensure that they are intact and can play a safety protection role in time.Strengthen safety training: Strengthen the safety training of operators to ensure that they are familiar with the operating procedures and safety precautions of the punching machine to avoid safety accidents caused by improper operation.
Regularly check the screw tightening: Since the punching machine will vibrate during operation, which may cause the screws to loosen, it is necessary to regularly check and tighten the screws to ensure the stability of the equipment.
Keep the working environment clean: After finishing work every day, cut off the power supply and wipe the equipment and tidy up the surrounding environment to maintain a good working condition.
The regular maintenance of the automatic punching machine involves cleaning, lubrication, inspection, maintenance and safety protection.Only by doing these things well can we ensure that the punching machine is always in good working condition, improve production efficiency and reduce the risk of failure. Therefore, when using the automatic punching machine, enterprises should attach great importance to maintenance and make corresponding maintenance plans to ensure its normal operation and long-term stability.
